Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0 - 2.0mm Thick

Name: Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 10 20mm Thick
Brand: S&G Engineering Solution Limited
Price: 1 USD

Brand Name : S&G Engineering Solution Limited

Model Number : S&G-Racking Roll Forming Machine

Certification : ISO:9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G-Racking Roll Forming Machine

Thickness : 0.4---0.8 mm (As customer`s need)

Power : 11KW (According to the thickness)

Working efficiency : 15-20m/min

finishing thickness : 60um ~ 80um

finishing : powder coated or galvanized

colour : blue, orange, GI

Product name : Heavy Duty Selective Warehouse Pallet Rack System

Contact Now

Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0-2.0mm Thick With Hydraulic Post Cutting

Applications:

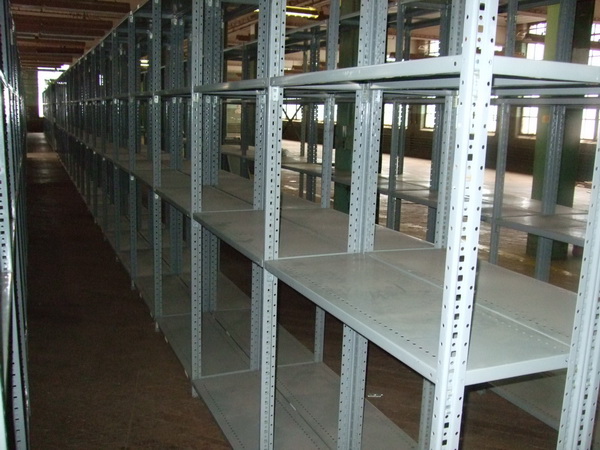

The finished iron shelves storage rack panels are widely used in a home, business, store, or elsewhere to hold items

of value that are being displayed, stored, or offered for sale.

Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0 - 2.0mm Thick

Working Flow

Decoiling --- leveling --- Servo feeding --- Punching Holes ---- Rollforming ----Cuting--- Finished Racks on Tables

Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0 - 2.0mm Thick

Technical Parameters

1. Suitable raw material: steel coil

2. Material thickness range: 1.5-2.5mm

3. Main motor power:15kw; hydraulic station:11kw

4. Forming speed: 6-8m/min(include the punching)

5. Quantity of rollers: 20 sets

6. Shaft Material and diameter: 80 mm, material is 40CR

7. Tolerance: +-2mm

8. Driving system: chains

9. Controlling system: Mitsubishi

10. Total weight: about 15 Tons

11. Voltage: 380V/ 3phase/ 50Hz

12. Material of forming rollers: Gcr 15, coated with chromed treatment

13. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

Technical Information of Supermarket Upright Shelve Rack Roll Former
1	Material width	As your regards
2	The effective width	As your regards
3	The thickness of Coil	1.0-2.5mm or more
4	Application	Upright Shelves Racking Panels
5	The overall dimensions	13 x 1 x 1.4 meters
6	Total weight	12 Tons
7	Main Power	15KW
8	Uncoiler	Manual Uncoiler
9	Inner diameter	508-610mm
10	Outer diameter	1200mm
11	Loading weight	3 tons
12	Forming speed	around 10m/min
13	Forming steps	25 stations or more
14	Bracket	welded with 36 # I-steel
15	Material of Shafts	45# steel with rough finished and then refined finished
16	Diameter of the Roll	80mm
17	Material of Rollers	high quality Cr12 mould steel
18	Processing Technology	quenching & tempering treatment
19	Material of Rack	complete welded structure of A3 steel plate 16mm thickness
20	Transmission	Transmitted by the chain-bracket/ Gearbox T180
21	Material of Chain	45#steel with heat treatment of HRC45-50°
22	Holders under chain for lubricant	By the machine
23	Material of cutting blade	Cr12 mould steel with quenching treatment 60-62
24	Cutting system	Hydraulic Post-cutting
25	Voltage	380V/50HZ/3phase

Our Services

Pre-sale Service

1. Send you invitation letter, If you wanna visit our factory and check the machines.

2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.

Selling Service

1. Short delivery time after deposit 30-40 days.

2. Email you the production schedule and make prompt delivery for you.

3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4. Always be here for your service 12 hours per day.

After-sale Service

1. We welcome all feedback about our products and prices and services from our customers.

2. Any questions, please contact with us freely by E-mail or Telephone.

Features of Racking Roll Forming Machine

1. Gearbox as the transmission method, to make sure it can give enough power to handle thickness material meanwhile make sure the machine working steady.
2. Higher speed, normally speaking the machine working speed could reach 15meter per minute.
3. Pillar stand frame to make sure machine structure is strong and beautiful.
4. Best brand elements like PLC, hydraulic system and others.
5. PLC control system, so you can control length, working speed and accuracy easily.

Profile Drawing:

Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0 - 2.0mm Thick

Machine Picture:

Powder Coated Shelf Storage Rack Roll Forming Machine For Steel Sheet 1.0 - 2.0mm Thick
