1.5mm - 2.0mm Sheet Metal Forming Equipment , Large Cold Roll Forming Machine

1.5mm - 2.0mm Forming Thickness Rack Roll Forming Machine , 12 m/min -15 m/min Working Speed

S&G Super Shelves Making Machine Metal storage racks Roll forming Machine by bello lin Technology features one, put the material rack: using the semi-automatic scale. Random feeding feeding, the feeding frame is convenient to feed. Equipped with automatic brake, stable performance. Two, after feeding through the Kaiping machine into the main engine. The first shaft with 45# conditioning, the machine used in the roller material with 40CY quenching. Re processing, vertical plate frame quality of Q235 steel plate, forming a cutting line, the vertical plate precision greatly, transmission parts of the chain of transmission, smooth operation, using a 10 kW motor motor, 350 gear box, the yield can be as needed. Can work continuously for 120 hours without error. Three, the use of Botou Shun Tai welding spot welding machine, DN2-254H.C type energy saving. Four, flying saw: the factory production of flying saw. The flying saw has the advantages of small noise, safety and convenient operation, and is combined with a shaft and a copper sleeve. Motor with 7.5 kW quality motor. Five, distribution box. Developed by the combination of electrical power and the factory has professional and technical personnel. Has the advantages of convenient operation, high accuracy and high performance.

Technical Details:

• Width of Coil: Base on customer profile
• Working speed:12-15m/min(Not include cutting)
• Thickness of coil:1.5-2.0mm
• The structure is simple and the appearance of the machine is beautiful because
• we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the
• length to be precise and the finished product clear without deforming .
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Details of each composition:

1. Product name

storage rack roll forming machine

2. Working flow

Decoiling--feeding---formin---cutting-----pressing---finished product

3. Technical Parameters

Main Components

Working Flow of Roll Forming Machine

Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables

Features of Racking Roll Forming Machine

The punching can be designed according to customers’ requirements. The storage device will help to coordinate the operation of each part of this storage rack roll forming machinery so as not to produce speed conflict.
For different dimensions of racking products, users can adjust the product dimension by changing the spacer bush in the racking roll forming machine.
The design of this storage rack roll forming machinery enables the roll forming part to be changed quickly. That is why only one machine can produce several different profiles and the forming unit can be changed in a short time.
We have a professional technical team owning more than 15 years’ working experience.

After-sales service

Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.

Other service

Raw Materials

Supply of raw materials made in China with good quality, quick delivery and reasonable price

Finished products purchase

Profile Drawing:

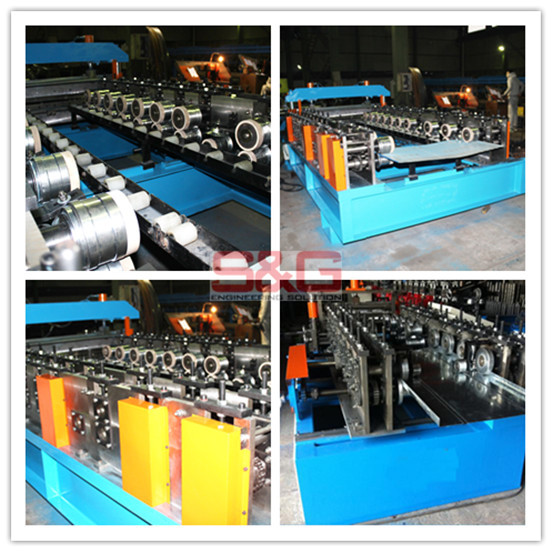

Machine Picture:
