60mm Octagonal Tube Cold Roll Forming Machine 0.4 - 1.2mm Thickness

Name: 60mm Octagonal Tube Cold Roll Forming Machine 04 12mm Thickness
Brand: S&G Engineering Solution Limited
Price: 1 USD

Wholesale 60mm Octagonal Tube Cold Roll Forming Machine 0.4 - 1.2mm Thickness from china suppliers

Brand Name : S&G Engineering Solution Limited

Model Number : S&G-Octagon Pipe 60

Certification : ISO:9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G-Octagon Pipe 60

Thickness : 0.4 - 1.2mm (As customer`s need)

Power : 7.5KW (According to the thickness)

Working efficiency : 8-10m/min

Forming Stations : 20 Stations

Roller material : Gcr12MoV quenched

Shaft material : 45#steel processing

Diameter of shaft : ￠50mm

Contact Now

Galvanized Steel 60mm Octagonal Tube Cold Roll Forming Machine,60 Octagon High Frequency Pipe Roll Forming Machine

Specifications:

Configurations	Decoiling---Loading---Molding---Automatic cutting off---Discharging N.B: you can choose the Perforation machine and punching part as your demand.

Material	Raw material	colored steel plate, galvanized plate, or aluminum plate
	Thickness	0.4 – 1.2 mm (As customer`s need)
	Feeding width	500mm (According to customer`s profile)
	Material hardness:	550 Mpa---350 Mpa
Manual Uncoiler	Inner Diameter	200-300mm
	Max Coil width	350mm
	Capacity	5T
Servo feeding and Punching part	Servo feeding power	3kw
	This part to punch the hole, you can change the dies to punch different holes.
	Punching	42T
	Die material	Gcr12MoV quenched
Main Forming machine	Forming steps	20 stations ( Depend on Profiles )
	Shaft diameter	Φ50mm
	Shaft material	Quenched hardness 58-62
	Design type	Middle plate welded
	Transmission	Chain box (Chain and gear box depend on thickness and customer`s need)
	Machine frame	350# H steel welded; Steel plate welded/ Memorial arch frame type
	Roller material	Fine steel precision work processing of GCr15,Roller datum roller diameter φ120,Maximal roller diameter:φ200
	Shaft material	45# steel with tempering
	Cutting blade material	Gcr12MoV quenched
	Working speed	8-10m/min
	Power of machine	7.5KW (According to the thickness)
	Type of cutting	Pneumatic flying saw cutting off
	Cutting tolerance	10m+/-0.5mm
	Material of blades	Cr12Mov, herd steel HRC 58-62℃
	Cutter quantity	1 set
	Working pressure	20MPA

Other Spare part	Weight	About 12 ton
	Dimension	16000mmX1000mmX900mm
	Main body color	As required
	Voltage	380v/50hz/3ph(or as required)
	Spare cutting blade	One piece
	Fuse	2 pieces
	Relay	2 pieces
	Travel switch	2 pieces
	Solenoid valve	1 pieces

Roll Forming machine for manufacturing Octagonal & round Tube of Rolling Shutter Windows and Doors system
The round or octagonal rolling tube is for winding up the rolling shutter, made in various shapes. Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines.

Rolling shutter Octagonal tube & round pipe for door and windows related information
Rolling shutter door & windows Octagonal tube
60mm Octagonal Tube Cold Roll Forming Machine 0.4 - 1.2mm Thickness

A=40mm diameter tubes: 0.5-0.6mm thickness;
A=60mm diameter tubes: 0.6-0.8mm thickness;
A=70mm diameter tubes: 1.0-1.2mm thickness;
The up mentioned three tubes, 40mm, 60mm, 70mm are the typical style in the world market. Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.

Competitive Advantage:

High Quality;
Reliable ;
Durable;
Reasonable Price;
Good after Service;
1 Year Warranty;
More Than 10 Years Experience.

Profile Drawing:

60mm Octagonal Tube Cold Roll Forming Machine 0.4 - 1.2mm Thickness

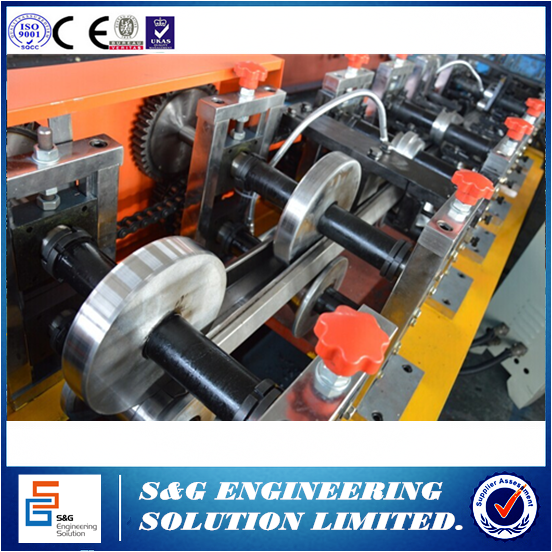

Machine Picture:

60mm Octagonal Tube Cold Roll Forming Machine 0.4 - 1.2mm Thickness
