Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Product Categories
S&G Engineering Solution Lmt.
Contact Now

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Brand Name : S&G Engineering Solution Limited

Model Number : S&G-Round pipe

Certification : ISO:9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G-Round pipe

Thickness : 0.5 - 1.0mm (As customer`s need)

Power : 7.5KW (According to the thickness)

Working efficiency : 10-15m/min

Forming Stations : 22 Stations

Roller material : Gcr12MoV quenched

Shaft material : 45#steel processing

Diameter of shaft : ￠75mm

Contact Now

11KW Automatic Flying Saw Cutting Round Tube Forming Machine Galvanized Steel, Pipe Roll Forming Machine

Detailed Product Description

Technological Process

Un-coiler---feeding guide---roll forming---argon welding---cut off---run out

Main Specifications

Coil Material Thickness 0.4-0.5mm
Coil width Custom-made
Yield Strength 100-260Mpa
Material

Galvanized steel
Decoiler / Uncoiler Coil Width Max. 350mm
I.D 300mm
O.D Max. 560mm
Roll Forming Machine Forming stations 26 Stations ( Depend on Profiles )
Roller material

Fine steel precision work processing of GCr15,

Roller datum roller diameter φ120,

Maximal roller diameter:φ200
Diameter of shaft 50mm
Shaft material quenched hardness 58-62 diameter roller: 60mm
Transmission gear box transmission system
Forming speed 6-10m/min
Main power 11W
Cutting Cutting type Hydraulic cutting
Cutting Tolerance 10m+/-0.5mm
Encoder OMRON Brand
Electrical control PLC Delta Brand or Custom-made
Inverter Delta Brand or Custom-made
Touch screen Delta Brand or Custom-made
Operation type Touch screen & Button
Runout Table Table type Simple nonpower type
Function To support the finished panels

Main Components

Main Roll Forming Machine 1 Unit
PLC Computer Control Board 1 Unit
Fast conveyor belt 1 Unit
Decoiler / Uncoiler 1 Unit
Cutting To Length 1 Unit
Runout Table 1 Unit

Our Advantage

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 20 Years Experience

Machine Pictures

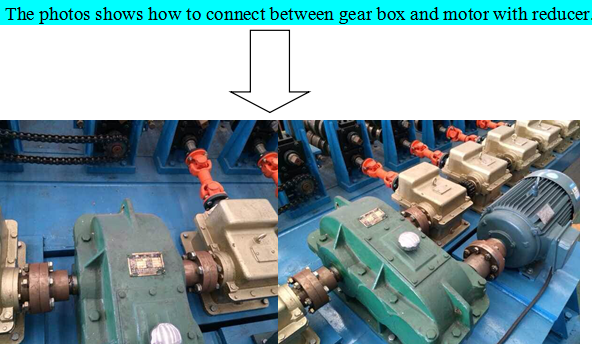

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Profile Drawing:

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Machine Picture:

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting

Galvanized Steel Pipe Roll Forming Machine 11KW Automatic Flying Saw Cutting
