85mm Roller Shutter Door Roll Forming Machine 12 Stations 3T Capacity

S&G Engineering Solution Lmt.
Contact Now

85mm Roller Shutter Door Roll Forming Machine 12 Stations 3T Capacity

Brand Name : S&G Engineering Solution Limited

Model Number : S&G-RD 85

Certification : ISO SGS, CE

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G-RD 85

Thickness : 0.5---1.2 mm (As customer`s need)

Power : 11KW (According to the thickness)

Working efficiency : 8-12m/min

Forming Stations : 12 Stations

Roller material : Gcr12MoV quenched

Warranty : 12 months limited warranty

After-sales Service Provided : Engineers available to service machinery overseas

Quality system : ISO9001

Contact Now

85mm Roller Shutter Door Slats Roll Forming Machine Rolling Shutter Door Roll Forming Making Machinery

S&G is a professional manufacturer designing and producing roll forming machines established in 2010. We have 2 factories working in Wuxi. Here are more than 100 workers to serve you. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".

Now our shutter door roll forming machine have been exported to many countries,the most important is that all you need can be customized.

Specifications:

Article No. Item Name Specification
1 Feeding width 500mm coil sheet
Effective width 89mm
2 Thickness of panel 0.7mm-1.2mm coil sheet
3 Roller station 9-13 stations
4 Shaft Diameter 50-75mm
5 Productivity 8-15m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 2.5-5 ton
9 length 5.5 m-10m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 8 Tons
13 Motor 3kw-15kw
14 Driving way Chain transmission
15 Chain size 0.6 inch-2 inch
16 Cutting system Hydraulic cutter

Other Spare part

Weight About 14 ton
Dimension 13500*1650*1500mm
Main body color As required
Voltage 380v/50hz/3ph(or as required)
Spare cutting blade One piece
Fuse 2 pieces
Relay 2 pieces
Travel switch 2 pieces
Solenoid valve 1 pieces

Description:

The Metal Roller Door Machines Color Steel Garage Door Machinery can manufacture the Galvanized roller shutter door slat. Produced products are in fashionable design and are widely used. Metal Roller Door Machines Color Steel Garage Door Machinery with the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.

Applications:

Rolling shutter door, shutter door, roller shutter door, shutter door slat...

Competitive Advantage:

  1. High Quality;
  2. Reliable ;
  3. Durable;
  4. Reasonable Price;
  5. Good after Service;
  6. 1 Year Warranty;
  7. More Than 10 Years Experience.

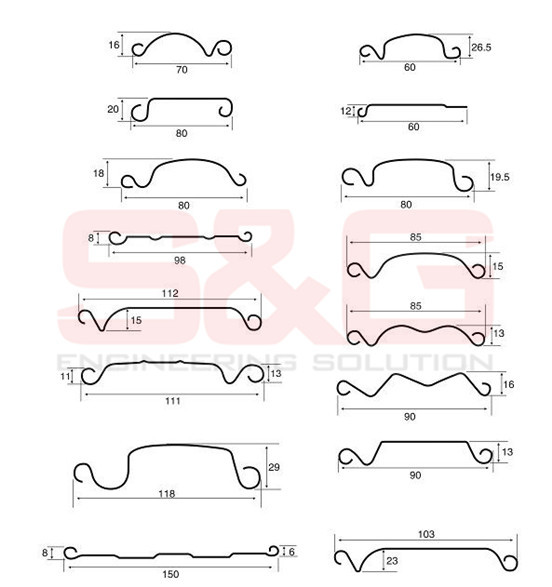

Profile Drawing:

85mm Roller Shutter Door Roll Forming Machine 12 Stations 3T Capacity

Machine Picture:

85mm Roller Shutter Door Roll Forming Machine 12 Stations 3T Capacity
