PUR 24m Double Belt Cooling System PU Sandwich Panel Production Line For Insulated PU Foaming Panel

Brand Name : S&G Engineering Solution Limited

Model Number : S&G-PU Sandwich Wall Panel

Certification : ISO:9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G-PU Sandwich Wall Panel

Thickness : 0.3-0.8 mm (As customer`s need)

Power : 30KW (According to the thickness)

Working efficiency : 12-15m/min

Forming Stations : 23 Stations

Roller material : Gcr12MoV quenched

Shaft material : 45#steel processing

Dimension : 24500mm*1650mm*1500mm

Sandwich Panel Width : 600-1200mm

Working speed : 3-10m/min (adjustable)

Control mode : Imported PLC system

Contact Now

PUR 24m Double Belt Cooling System PU Sandwich Panel Production Line For Insulated PU Foaming Panel

Details of Roll Forming Machines

This machine is used to form color-steel facings, having platelike structure, welded frame and gear-chain transmission. Specification of color-steel facings for wall panels and internal roof: 1,000mm in width and 0.4~0.7mm in thickness;
Specification of color-steel facings for external roof forming rollers of 75mm in diameter and with the power of 5.5kw,Maximum forming speed 14m/min.
For forming wall panels and internal roof, the machine shall be with 12-15 forming rollers of 75mm in diameter and with the power of 30 kw, Maximum forming speed 14m/min.

More Specifications:

Material	Raw material	colored steel plate, galvanized plate, or aluminum plate
	Thickness	0.3-0.8 mm (As customer`s need)
	Feeding width	300mm-1250mm (According to customer`s profile)
	Material hardness:	550 Mpa---350 Mpa
Hydraulic Uncoiler (With Coil Car)	Inner Diameter	510-610mm
	Max Coil width	1250mm
	Capacity	10T/8T
	Hydraulic cylinder lift stroke	Up panel 0.5m, Down panel 0.5m
	Coil car stroke	2.5m
	Pressure of hydraulic system	6.3Mpa
Main Forming machine	Forming steps	24 stations ( Depend on Profiles )
	Shaft diameter	Φ60mm
	Design type	Middle plate welded
	Transmission	Gear box (Chain and gear box depend on thickness and customer`s need)
	Machine frame	350# H steel welded; Steel plate welded/ Memorial arch frame type
	Roller material	Gcr15MoV
	Shaft material	45# steel with tempering
	Cutting blade material	Gcr12MoV quenched
	Working speed	12-15m/min
	Power of machine	30KW (According to the thickness)
	Type of cutting	Hydraulic
	Cutting tolerance	±1mm
	Material of blades	Gcr12 quenched
	Cutter quantity	1 set
	Working pressure	20MPA
Pre-heating Room	Temperature sensor	Hot couple
	Temperature adjustment	Automatic control by temperature control equipment
	Hot air motor	18.5Kw
	Hot air heater	200Kw
	Heat type	Heated by electricity and air circulate
Flying Saw Cutting Machine	Outline dimension of band saw cutting machine	5500mmx5000mmx 3000mm
	Run speed of band saw	1000-1500rpm
	Rotate diameter of band saw	550mm
	Cutting speed of band saw	50m/min-1000m/min
	Width of band saw	30mm
	Length of band saw	3000mm-4000mm
	Transverse move distance	1500mm
	Cut length on line	3000mm
Configurations	Uncoiling→ (Perforation machine )→Feeding material into machine→ Roll forming→ PU foaming→ Pre-heating Room→ Auto cutting→ Products receiving N.B: you can choose the Perforation machine and punching part as your demand.

Other Spare part	Weight	About 25 ton
	Dimension	42000mm * 3600mm * 3300mm
	Main body color	As required
	Voltage	380v/50hz/3ph(or as required)
	Suitable working temperature	About 25℃
	Spare cutting blade	One piece
	Fuse	2 pieces
	Relay	2 pieces
	Travel switch	2 pieces
	Solenoid valve	1 pieces

Applications:

Roof Wall PU Sandwich Panel, Insulated Sandwich Panel, Prefabricated House, Prefab House, Mobile House, Cool Room...

Advantages :

• Light weight: 10~ 14 kg/m2and hence reduced steel frameworks and system can become economical.
• Good thermal insulation, with average coefficient of thermal conductivity is 0.018 ~ 0.020 W/mk.
• Available in customized length. And in wide range of colors.
• Cold and heat resistance: Perfect temperature resistance deformation from -110º C to 120º C.
• Great energy saver and hence indispensable in air-conditioned, cooled and heated buildings.
• Virtually zero maintenance throughout life.
• Installation is convenient and Flexible; not requiring large- scale lifting devices, and thus lowering building costs.
• High intensity and large rigidity ensures suitability for weight-bearing structures and for supporting and protective structures.
• Non-water absorbent.
• Environmentally friendly. And bring down life cycle cost for any built environment.

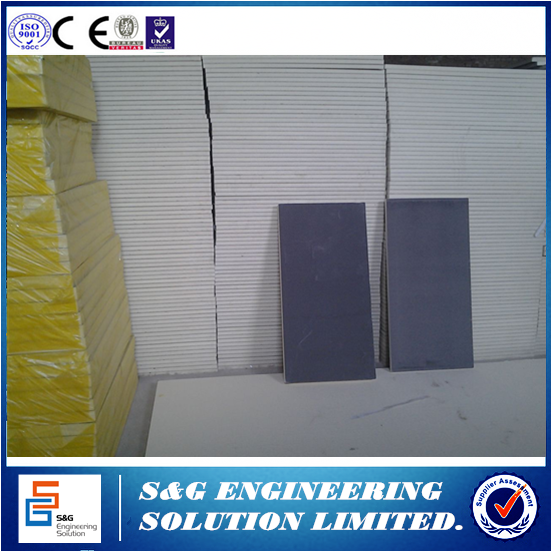

Pu Sandwich Panel Picture:
