Cable Tray Roll Forming Machine good quality,Manufacturing Machine/Electric cable tray roll forming machine
Our products with high technical content, good quality.
We undertake production with high technology.
Our factory is a professional manufacturer specializing in designing, making, installing and export of roll forming machines. Our products not only sell well in my country but also export to Russia, Kazakhstan, Nigeria, Malaysia,India, Australia and so on.
All technical parameters can be changed, according to user s need.
We also leading the roll forming machinery in the our town ,we can offer the best serive and high technicals
Feature:
1. Quickly change purlin sizes
2. Innovative time saving cutting system, purlin size adjustable cutting mold
3. Suitable raw material: Cold rolled coil,hot rolled coil, galvanized coil
Main Technical Parameters
| | Parameters |
| Material Information | Coil Material | Steel |
| Thickness | 0.8-2mm |
| Yield Strength | G550Mpa |
| Roller Material | Gcr15 HRC 58-62 |
| Shaft Material | High grade 45# steel |
| Shaft Diameter | 90mm |
| Main Motor Power | 22kw |
| Forming Speed | 8-12m/min |
| Forming Stages | 24 stages |
| Drive Mode | Motor + Chain drive |
| Punching Power | 11kw |
| Cutting Type | Hydraulic Mold Cutting |
| Cutting Blade Material | Cr12 Mov |
| Item | Quantity |
| Decolier | 1 set |
| Feeding and Guiding Device | 1 set |
| Roll Forming Line | 1 set |
| Hydraulic Cutting Device | 1 set |
| Hydraulic Station | 1 set |
| Control System | 1 set |
| Product Collecting Table | 2 pieces |
1. A 40 feet container is required
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.
Equipment Components

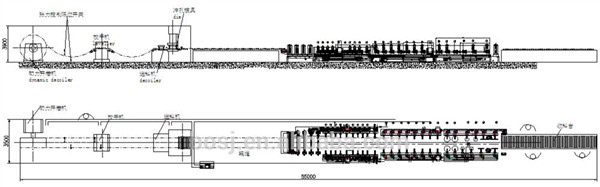

Automatic Decoiler → Leveling Machine → Serve Feeding Machine → Punching Press → Hydraulic cutting → Feeding Frame → Forming Machine → Collection Table
After-sales Service
We can provide oversea after sales. Our engineers have been to Chile, Nicaragua, Indonesia, Russia, Saudi Arabia, Singapore, and other countries for installation and training. Considering the time difference, we can offer online instant viedo to help customer to solve problems.
FAQ
1. How To Test Your Machine?
Liming company suggestion: please pay attention to the angle,size,knurled side, the symmetry of the R-angle and whether the panel tilts to one side or cocks up and down to ensure high quality machine.
2. Machine manufacturing standard:
Before delivery, we inspect and test the ordered machine to be sure its excellent working condition, during the loading, every part, including feeding part, transmission part and main structure of the machine, weill be fastened and inspected to preserve the excellent working condition of the machine, and when the machine arrives, it will continue working well just as the same as it does in our workshop.
Machine Picture:
